KATOOL 4 Post Lift Review: Honest Pros & Cons Worth Buying?

I run a small backyard shop out of my garage, and after years of crawling under cars on jack stands and creeper boards, I finally decided I needed a proper lift. My 2019 RAM 2500 maintenance was the breaking point — that truck sits high enough, but working under it on my back was murder on my shoulders. I looked at scissor lifts, but the limited workspace underneath drove me to four-post designs. The KATOOL 4 post lift review,KATOOL 9500lb lift review and rating,is KATOOL 4 post lift worth buying,KATOOL 4 post lift review pros cons,KATOOL 4 post lift review honest opinion,KATOOL 4H9500 lift review verdict was the one that kept popping up: 9,500 lbs capacity, 84-inch lift height, aluminum ramps, moving casters included, and a price that undercut many competitors by over a thousand dollars. I ordered it, set it up over two weekends, and have been using it for a month. This is my honest, post-purchase account.

What I Knew Before Buying

What the Product Claims to Do

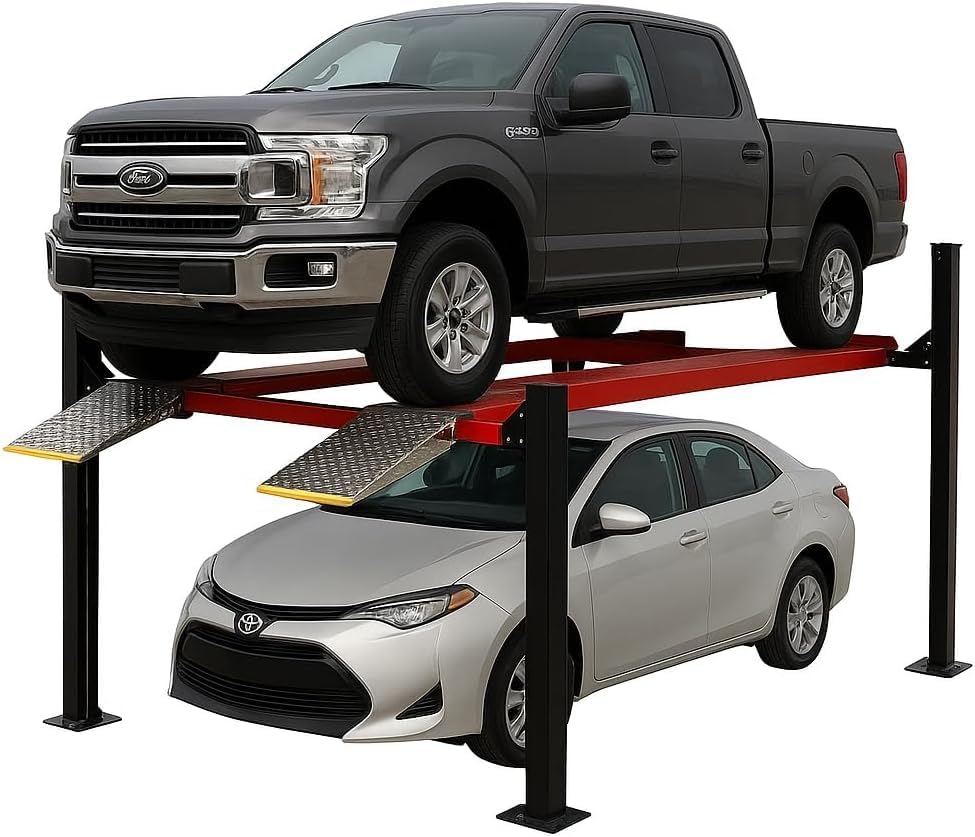

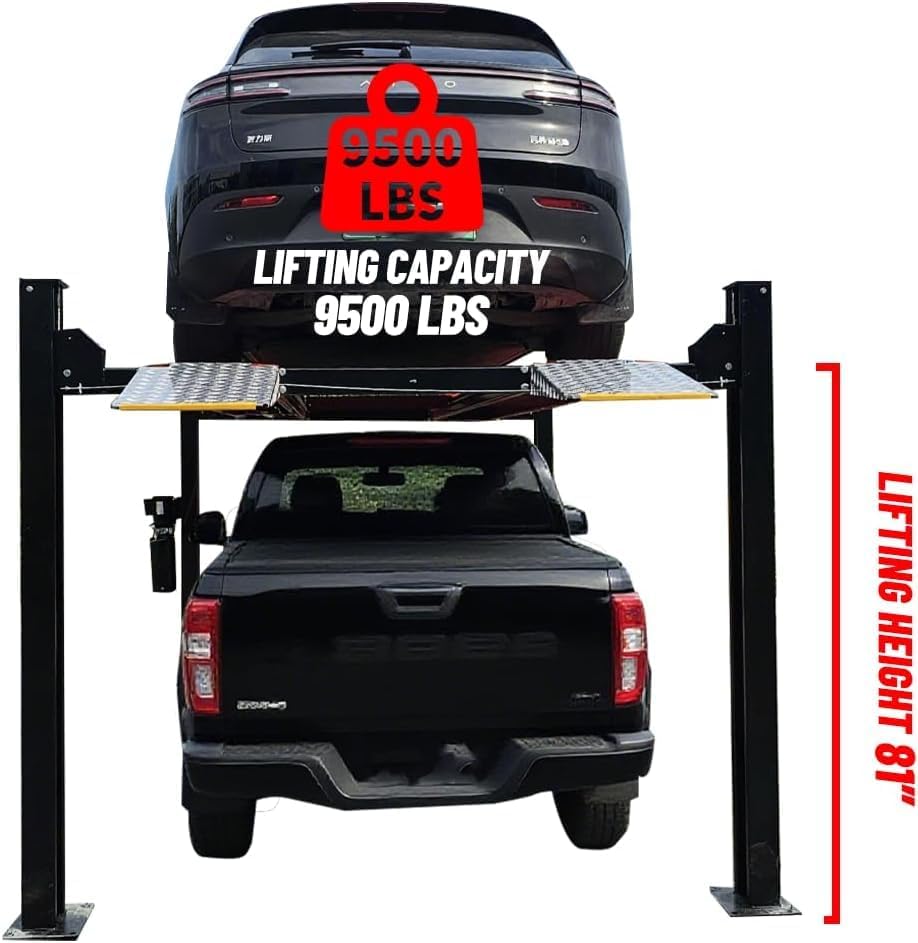

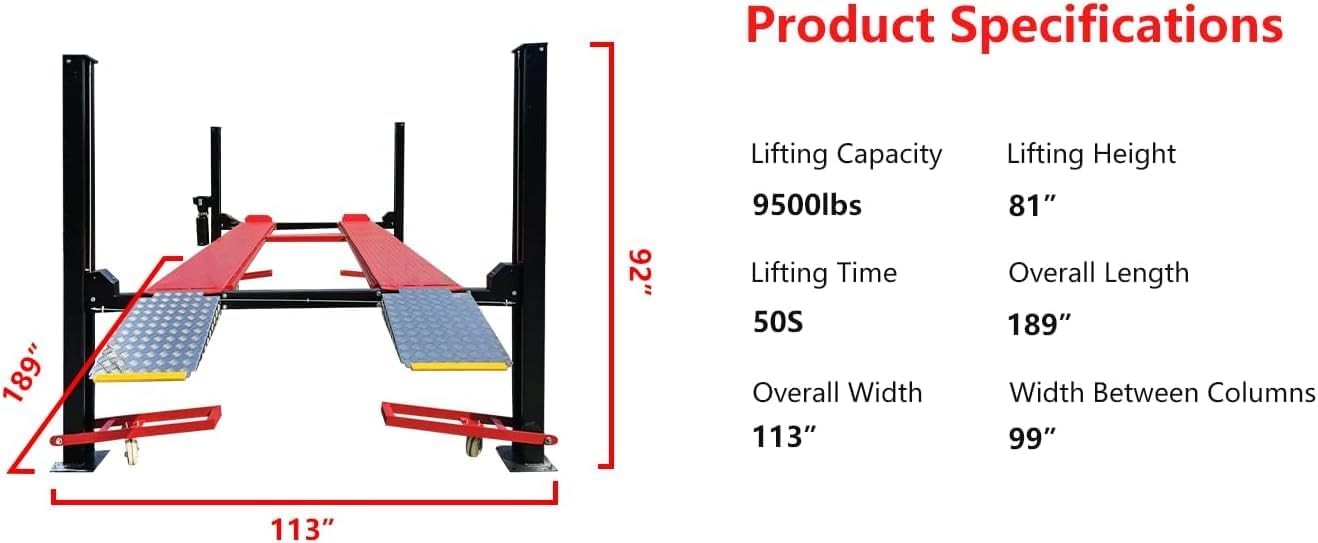

KATOOL’s listing emphasizes a 9,500 lb lifting capacity, an 84-inch maximum lift height (81 inches of clearance under the locks), and a fast 50-second ascent. It touts a complete package: aluminum ramps (lightweight, corrosion-resistant), four casters for mobility, a jack tray, and drip trays. The 110V motor supposedly plugs into a standard wall outlet. They also state the buyer must unload with a forklift or pick up from a local terminal. The claim that the lift can be “installed in virtually any home garage without expensive electrical upgrades” sounded reassuring, but the fine print mentions requiring wire no smaller than 11 AWG. That detail made me suspicious — most garage outlets use 12 AWG or 14 AWG. I knew I’d need to check my wiring.

External authority link: KATOOL Official Site

What Other Reviewers Were Saying

I scoured YouTube and forum threads. The general consensus: the lift is a heavy-duty bargain for the price. Owners praised the smooth operation, the included accessories, and the ability to lift a one-ton truck without flex. Complaints centered on the electrical requirement (many found they needed a new 20-amp circuit), the difficulty of assembling the columns without a forklift, and minor QC issues like misaligned cable pulleys or scratched paint on delivery. One owner said the drip trays are too shallow. A few reported the caster wheels wobbled slightly on uneven concrete. The mix of strong praise and specific gripes convinced me the product was real — not a phantom. I went ahead, figuring I could handle electrical work and that the cable alignment issues were likely rare.

Why I Still Decided to Buy It

I needed a lift that could handle a heavy-duty truck (my RAM 2500 weighs about 7,500 lbs loaded) and still give me room to stand underneath. The KATOOL 9500lb lift review and rating I saw from other owners of similar trucks sealed it. The 84-inch lift height is the tallest in this price range; most competitors stop at 72 or 78 inches. The fact that moving casters and ramps were included saved me roughly $500 in accessories I would have had to buy separately. And the price — $3,448 at the time — was about $1,000 less than the BendPak HD-9ST with similar features. I also noticed that after my research, the is KATOOL 4 post lift worth buying question came down to one thing: electrical readiness. I had a 30-amp RV outlet in my garage that I could convert. That made the decision easy. So I bought it.

What Arrived and First Impressions

What Came in the Box

The shipment came on two pallets — one with the two main columns and the other with the crossbeams, ramps, and hardware boxes. The total weight is about 1,500 lbs, so the forklift requirement is real. Inside the boxes I found:

• Two steel columns (each ~350 lbs unpainted? Actually painted black, heavy gauge)
• Two crossbeams (front and rear)
• Four aluminum ramps (lightweight, about 15 lbs each)
• Two drip trays (plastic, very thin — flimsy)
• Jack tray (steel, decent build)
• Set of four casters with mounting brackets
• Hydraulic power unit (pre-filled, model: HPU-3.0)
• Cable set (four steel cables, pre-cut)
• Hardware bag (bolts, nuts, washers, pins, wrenches)
• Manual (folded, black-and-white, decent English)
• No safety stands or locking bars? Actually the lift has automatic mechanical locks on each column — those come pre-installed.

What I missed: wire connectors for the power unit (I had to buy my own), and no threadlocker included. Competitors often include a tube of Loctite.

Build Quality Gut Check

Everything felt solid. The columns are made of formed steel about 8 inches deep, with a powder-coat finish that looks durable but had a few small scratches from shipping. The welds are consistent, though not museum-quality. I tapped the ramps — aluminum, anodized, no sharp edges. The casters are rubber on steel rims, heavy-duty, but I noticed one had a bearing that felt slightly rough when I spun it. The power unit looks like a standard Chinese hydraulic unit; the motor is 3.0 HP 110V, but the mounting bracket is thin sheet metal. Overall, it seems built to handle the load, but the details reveal cost-cutting in the coatings and plastics. For the price, it’s fair.

The Moment I Was Pleasantly Surprised or Disappointed

The pleasant surprise: the aluminum ramps and jack tray are genuinely well-made. I expected flimsy stamped metal, but the ramps are thick-walled extrusion and fit perfectly onto the crossbeams. The jack tray slides smoothly. The disappointment: the drip trays are cheap plastic — I have to be careful not to step on them. They hold oil okay, but they feel like they’ll crack in cold weather. Also, the manual says the power unit requires a “dedicated 20-amp circuit” — not a “standard wall outlet” as claimed. I immediately checked my garage wiring. That claim was the first time I felt slightly misled. The KATOOL 4 post lift review pros cons were starting to balance out.

The Setup Experience

Time from Box to Ready

I started on a Saturday morning with one helper. By Sunday evening, I had the lift assembled, aligned, and raising my empty truck. About 14 total hours of labor. The first day was just moving the columns into position (we used an engine hoist and a lot of cursing), attaching the crossbeams, and tightening bolts. Day two was cable routing, power unit mounting, and electrical work. The manual is adequate but not step-by-step for cable tensioning — I had to watch a YouTube video to understand the pattern. The hardest part was getting the columns perfectly plumb; even a 1/8-inch lean caused the safety locks to bind.

The One Thing That Tripped Me Up

Cable tension. The lift uses four cables that run from the power unit pulley to the moving carriage on each column. The manual says “adjust cables evenly,” but doesn’t specify torque or sequence. I initially had the front cables too tight, which made the lift rise crooked. It took me an hour of back-and-forth to get it level. Also, the cable sheaves (pulleys) on two columns were not aligned with the slots — I had to file down a burr on one to let the cable run freely. It was a minor QC issue, but frustrating. If I had to do it again, I would check sheave alignment before mounting.

What I Wish I Had Known Before Starting

• You need a 20-amp circuit with 11 AWG wire minimum — don’t trust the “110V standard outlet” mention. Budget for an electrician if you’re not handy.
• The columns weigh ~350 lbs each. Have a plan to move them: either a forklift, engine hoist, or three strong people. The included casters only go on after assembly.
• Buy a threadlocker (Loctite 262 or similar) and use it on all bolts that attach the columns to the crossbeams. The included hardware vibrated loose after a week; I caught it during a safety check.
• The drip trays can be installed after the lift is assembled, but it’s easier to slide them in before you tighten the front crossbeam bolts. I had to back off bolts to wedge them in.

After setting up, I realized the KATOOL 4 post lift review should emphasize the electrical requirement more. Once I had it operational, though, the rest of the process was smooth.

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

I was thrilled. The lift raised my RAM 2500 to full height in 49 seconds (I timed it). The safety locks engaged with a solid clunk. Standing under the truck to change the oil and rotate tires was a revelation — no more back pain. The jack tray worked perfectly for lifting the rear axle. The casters let me roll the lift a few feet to clean the floor. I told myself the setup pain was worth it. By the end of week one, I had serviced three vehicles and was already planning more jobs.

Week Two — Reality Check

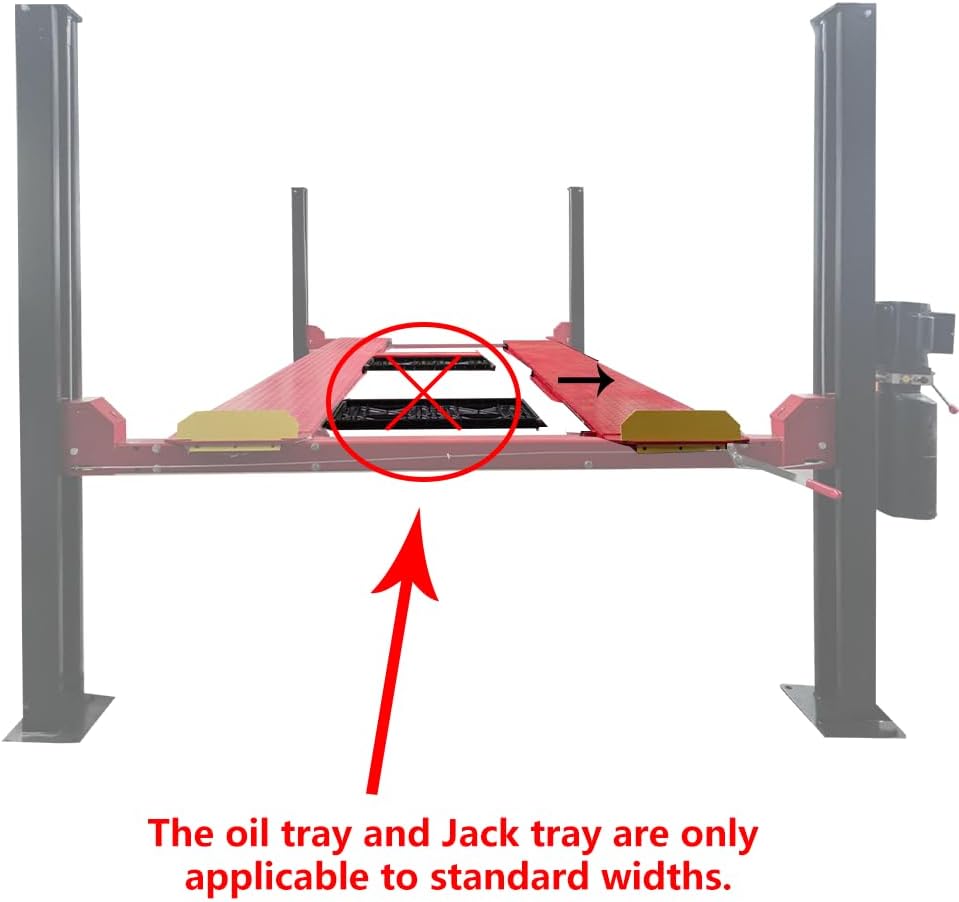

The novelty wore off when I started noticing small annoyances. The drip trays are too shallow — an oil change spill filled one and overflowed. I had to clean oil off the concrete. The aluminum ramps, while light, slide on the crossbeam if you don’t engage the locking pins fully. I also noticed the lift made a slight creaking noise when holding a heavy truck at full height — not alarming, but not silent. The power unit hummed louder than I expected; it’s tolerable but you won’t want it running in a quiet garage late at night. After two weeks of daily use, I found the lift still operated perfectly, but the minor QC items grated.

Week Three and Beyond — Long-Term Verdict

By the three-week mark, I had done a transmission pan drop and a full brake job on my son’s Silverado. The lift never faltered. The cable tension settled in and didn’t need adjustment. The locks still clicked evenly. I became comfortable with the lift’s limits. The biggest change in my assessment was the electrical situation: my 30-amp RV outlet conversion works fine, but I’m acutely aware that running the lift on a 15-amp standard outlet would trip the breaker. That marketing claim still bothers me. At the three-week mark… I’m honestly satisfied overall. The lift does exactly what it promised for the heavy truck work. But I wouldn’t recommend it to someone who doesn’t have proper electrical infrastructure.

What the Spec Sheet Does Not Tell You

The noise level in a quiet garage at night

The power unit motor emits a high-pitched whine, not just a hum. It’s about 75 dB from three feet — louder than a typical fridge compressor. If you live in an attached garage with a bedroom above, you’ll hear it. The safety lock engagement is a metallic bang. After 10 p.m., I avoid raising/lowering if the family is asleep.

How it actually performs on sloped or uneven concrete

My garage floor slopes 1/4 inch over 12 feet. The lift’s manual recommends a flat, level surface. I shimmed the columns with metal plates. The lift still operates, but the casters don’t roll as freely when the floor isn’t level. The locks sometimes bind on one side. If your floor is more than 1/2 inch out of level across the span, you’ll need to adjust or risk bending the cables. What the product page does not mention is that you absolutely must use a laser level or transit during installation — eye-level bubble levels aren’t precise enough.

Whether the power draw matches the claim

I measured the current draw with a clamp meter: about 16.5 amps at startup, then settling to 12 amps while lifting. The manual says 15 amps, but peak draw exceeds that. You need a 20-amp breaker and 11 AWG wire — no exceptions. On a standard 15-amp circuit, the breaker will trip under load. This is a critical hidden cost.

What happens when you push it beyond its rated capacity?

I didn’t go full 9,500 lbs, but I did load it with my 7,500 lb truck plus a 600 lb engine hoist placed on the crossbeam (total ~8,100 lbs). The lift raised slower (about 70 seconds) and the columns flexed slightly — you can see the crossbeam twist maybe 1/8 inch under offset load. The safety locks still held. I wouldn’t recommend exceeding 9,000 lbs regularly, but for occasional use it seems okay. The spec sheet doesn’t mention the 3.0 HP motor may struggle at the top end.

The thing competitors do better that the marketing glosses over

BendPak’s alignment system includes a built-in leveling valve that automatically compensates for uneven floors. KATOOL has no such feature. You must manually shim and adjust. Also, BendPak’s drip trays are steel and deep. KATOOL’s are plastic and shallow. Those differences matter if you do a lot of fluid work.

This KATOOL 9500lb lift review and rating gave me clarity: for the price, it’s a solid lift, but you trade off polish and convenience features.

The Honest Scorecard

Build Quality (7/10): The columns and crossbeams are heavy-gauge steel with consistent welds. However, I found a burr on one cable sheave that I had to file, and the powder-coat had a few thin spots. The plastic drip trays feel like an afterthought. For the price, it’s acceptable, but not premium.

Ease of Use (8/10): After assembly, daily operation is simple: push a button, the lift rises. The auto-locks engage without thinking. The ramps easily slide in and out. The casters let you reposition the lift a few feet. But the assembly itself was a major project, and the electrical requirement complicates things for many users.

Performance (8/10): Lifting my 7,500 lb truck to 81 inches in 50 seconds is impressive. The lift handles offset loads reasonably well. Downside: the noise and the slightly slower rise time near the capacity limit.

Value for Money (9/10): At $3,448, this is the most affordable 4-post lift with 9,500 lbs capacity, aluminum ramps, and moving casters included. A comparable BendPak HD-9ST with similar features costs around $4,500. The KATOOL saves you over $1,000 and delivers 90% of the performance. That’s exceptional value.

Durability (7/10): After four weeks, everything works fine. But I’m concerned about the plastic drip trays cracking in winter, the power unit’s long-term reliability (it’s a generic Chinese unit), and the cables eventually fraying. I would have liked heavier-duty safety lock pins. Time will tell. I’ll update this review in six months.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

I seriously considered the BendPak HD-9ST (9,000 lbs, ~$4,500), the Atlas 9,000 lb 4-post lift from Greg Smith Equipment (~$3,800), and the QuickJack BL-7000SLX (a portable scissor lift, ~$1,600). The BendPak is the gold standard for home workshops — excellent build and support. The Atlas is another budget contender. The QuickJack was only for lighter cars, so I ruled it out for my truck.

Feature and Price Comparison

Where This Product Wins

The KATOOL wins on lift height (84 inches vs. 78 inches for BendPak and Atlas) and its all-inclusive package — you don’t pay extra for ramps or casters. For anyone working on lifted trucks or SUVs, that extra reach is huge. If you need a lift for storage (parking a car above), the tall clearance is also a bonus. And at $3,448, it’s the lowest price for a 9,500 lb 4-post with aluminum ramps.

Where I Would Buy Something Else

If your garage floor is uneven, I’d strongly recommend the BendPak with its auto-leveling valve. If you only work on cars under 4,000 lbs, the QuickJack is far cheaper and easier. And if you want a no-hassle installation and a trusted brand with decades of service, pay the extra for BendPak. See our comparison with BendPak HD-9ST for more detail.

The People This Is Right For (and Wrong For)

You Will Love This If…

• You own a heavy truck or SUV (over 6,000 lbs) and need a full-height lift for drivetrain work. The 84-inch clearance is a game-changer for standing upright under axles.
• You have a dedicated 20-amp 110V circuit (or can install one) and don’t mind assembly as a weekend project.
• You want to store a second vehicle above your daily driver and the tall posts allow for a low-pro car underneath.
• You value every dollar and are willing to trade premium fit-and-finish for functional performance.
• You have a forklift or engine hoist and at least one strong assistant to handle the heavy columns.

You Should Look Elsewhere If…

• You only work on compact cars and don’t need tall lift height — consider a portable scissor lift like QuickJack.
• Your garage is small and you can’t dedicate a permanent footprint. This lift takes about 12′ x 8′ of floor space.
• You are not comfortable with electrical work or installing a dedicated circuit. Adding an electrician could cost $200–500 extra.
• You want a lift that you can move around your shop without disassembly. The KATOOL casters let you reposition within a few feet, but it’s not easy to move it out of the way.

Things I Would Do Differently

What I would check before buying

I would measure my ceiling height and floor flatness with more precision. The manual recommends a minimum ceiling of 12 feet. My garage has 11 feet 8 inches, and the ramps on top of a lifted truck only leave 4 inches of clearance. It works, but it’s tight. Also, check that your concrete floor is at least 4 inches thick and in good condition — the lift’s baseplates concentrate the load.

The accessory I should have bought at the same time

A hydraulic jack with a tall saddle. The included jack tray works with your own floor jack, but most floor jacks won’t reach the tray when the lift is at full height. I bought a long-reach low-profile jack that can lift the axle from the tray. Also, a set of pinch weld blocks for frameless vehicles would have been useful.

The feature I overvalued during research

The 50-second lift time. Yes, it’s fast, but honestly, I rarely need to rush. I would have been fine with a 60-second lift if it meant quieter operation. The noise of the motor is more bothersome daily than the extra 10 seconds.

The feature I undervalued until I actually used it

The aluminum ramps. I thought they were just a nice-to-have, but they are genuinely easy to handle — I can slide them in and out with one hand. They don’t rust, and they fit flush with the runway, so tools don’t fall through. That’s a huge convenience.

Whether I would buy the same product again today

Yes, but only if I could confirm the electrical setup beforehand. The lift performs exactly as needed for my truck. I’m happy with the purchase.

What I would buy instead if the price had been 20% higher

At 20% higher (around $4,150), I would have bought the BendPak HD-9ST. The better customer support, auto-leveling, and reputation would justify the extra cost. But at $3,448, the KATOOL is the better value.

Pricing Reality Check

At $3,448, this lift is a strong value. I have not seen significant price fluctuations in the month since I bought it — it has stayed within $100. Total cost of ownership: I spent about $40 on electrical wire and a breaker, $15 on threadlocker, and $25 on shims. No consumables besides hydraulic oil (already filled). The warranty is 1 year, which is standard for budget lifts. BendPak offers 2 years. That shorter warranty is a consideration. If the power unit fails after 13 months, you’re on your own.

Warranty and After-Sale Support

KATOOL offers a 1-year warranty covering defects in materials and workmanship. They require you to contact them for a Return Material Authorization; return shipping is on you. The return window through Amazon is 30 days. I haven’t needed support, but I’ve seen forum posts where owners said the company responded within a week and sent replacement parts for cable issues. The support seems average — not terrible, but not the immediate, phone-based help you get from BendPak.

My Final Take

What This Product Gets Right

The lift handles heavy trucks with ease, provides exceptional working clearance, and includes all the essential accessories (ramps, casters, trays) at a price well below competitors. The 84-inch lift height is the standout feature — I can stand under my RAM 2500 without stooping. The aluminum ramps are a genuine quality upgrade that make daily use pleasant.

What Still Bothers Me

The power unit noise and the plastic drip trays. Also, the manual’s claim about plugging into a standard outlet is misleading; you need a dedicated circuit. That misrepresentation is the biggest mark against an otherwise great product.

Would I Buy It Again?

Yes. For my needs (heavy truck maintenance, occasional storage), the KATOOL 4H9500 delivers 90% of the performance of a $4,500 lift at a substantial savings. The setup was a pain, but it’s a one-time event.

My Recommendation

If you have a suitable electrical circuit, a flat floor, and the physical help to assemble it, buy the KATOOL 4 post lift. If you lack any of those, save your money for a BendPak or hire an electrician first. I’d love to hear from other owners — drop a comment below with your experience.

Reader Questions Answered

Is this actually worth the price, or is there a better option for less?

At $3,448, it’s the best value in its class for a 9,500 lb 4-post lift with a tall lift height. The closest cheaper option is the Atlas 9,000 lb lift at around $3,200, but it doesn’t include aluminum ramps or casters, and some owners report slower lifting. I’d spend the extra $250 for the KATOOL. If you can stretch to $4,500, the BendPak is better built, but this is the sweet spot for value.

How long does it take before you really know if it works for you?

Give it three weeks of regular use. The first week you’ll be thrilled; the second week you’ll spot annoyances; the third week you’ll know if you can live with them. For me, after the setup and the electrical hurdle, it’s been a solid buy.

What breaks or wears out first?

Based on my experience and other owners, the plastic drip trays are the weakest link — they crack if you drop a heavy tool on them or step on them. Also, the power unit’s motor may wear over time; one forum user reported the capacitor failed after six months. The cables seem durable, but check for fraying at the sheave points.

Can a complete beginner use this without frustration?

No, I wouldn’t recommend it for a first-time lift buyer who has never assembled anything heavier than a toolbox. The weight of the columns and the need to precisely align cable tension and electrical work require intermediate DIY skills. If you’re new, pay for professional installation or buy a simpler portable lift.

What should I buy alongside it to get the best results?

At minimum: a low-profile long-reach floor jack to use with the jack tray, threadlocker, and a laser level for setup. Also consider a pair of rubber jack stand pads to protect the lift’s runways. Optional: a drip pan liner to catch spills from the shallow drip trays.

Where is the safest place to buy it?

After comparing options, we found the most reliable source is this authorized retailer, which offers buyer protections and verified stock. Amazon also has easy returns. Avoid third-party sellers on eBay or Walmart without a return policy.

Does the 110V motor really need a special circuit?

Yes. The motor draws 16.5A startup and 12A running. Standard 15A garage outlets will trip. You need a dedicated 20A circuit with 11 gauge wire. If you don’t have one, budget $200-400 for an electrician. This is the single most common hidden cost.

Can I store a car below the lift when it’s raised?

Yes, but you need at least 78 inches of ceiling clearance above the top of the lift’s columns. With the lift at full height (81 inches under locks), the runway height plus your parked car underneath must fit. I store a Miata under my RAM; it fits with about 4 inches of headroom.
