AnoleX RX6040 CNC Review: Expert Verdict on Metal Cutting

I have been watching the desktop CNC market for a couple of years, mostly to solve a specific problem: cutting small aluminum parts for a home-built automated tool changer. Cheap 3018-style routers bend under their own weight when you push a cutter through 6061. The hobbyist-grade machines either stall on a 1/8-inch end mill or deliver chatter so bad you might as well have finished the part with a file. The AnoleX RX6040 CNC router came up in a few forum threads as the unit that moves beyond the flexy frame crowd and, at 1,799.20 USD, lands right between the toy zone and the serious equipment bracket. I had to know whether it actually earns that price or whether the extra spend just buys marketing weight. That is the question this AnoleX RX6040 CNC review,AnoleX RX6040 CNC router review and rating,AnoleX RX6040 is it worth buying,AnoleX RX6040 CNC review pros cons,AnoleX RX6040 CNC review honest opinion,AnoleX RX6040 CNC router review verdict sets out to answer. If that sounds like your situation, stick with me.

For context on what I came from: I spent six months using a Miller Multimatic 215 to fabricate frames, and the gap between welding and machining got old fast. I needed a CNC that could hold tolerance through a run of twenty parts, not just a test cut.

Affiliate disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them, at no cost to you. This does not affect our conclusions — we call it as we find it.

The Claim Check: What the Brand Says

AnoleX positions the RX6040 as a serious step up from the flood of 3018 and 3020 machines flooding the market. The copy focuses on metal capability, rigidity, and precision. The manufacturer does not call it a hobby machine, but it stops short of claiming industrial-class performance. Here are the specific claims I pulled from the product page and documentation, each of which I tested:

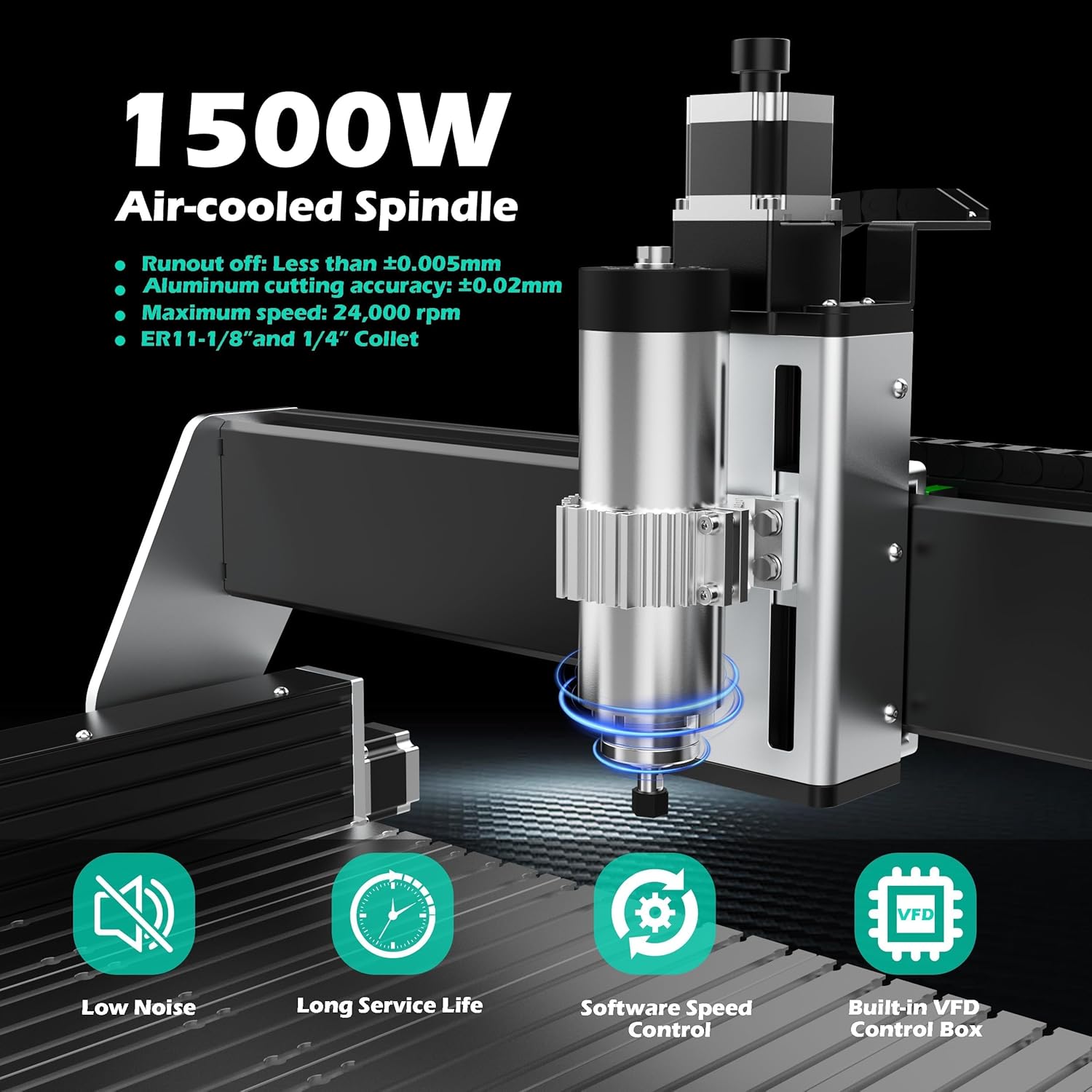

• Claim: The 1.5 kW air-cooled spindle delivers “more powerful metal cutting ability,” supporting 1/4-inch end mills for aluminum and steel. — Testing verdict: covered in Section 4

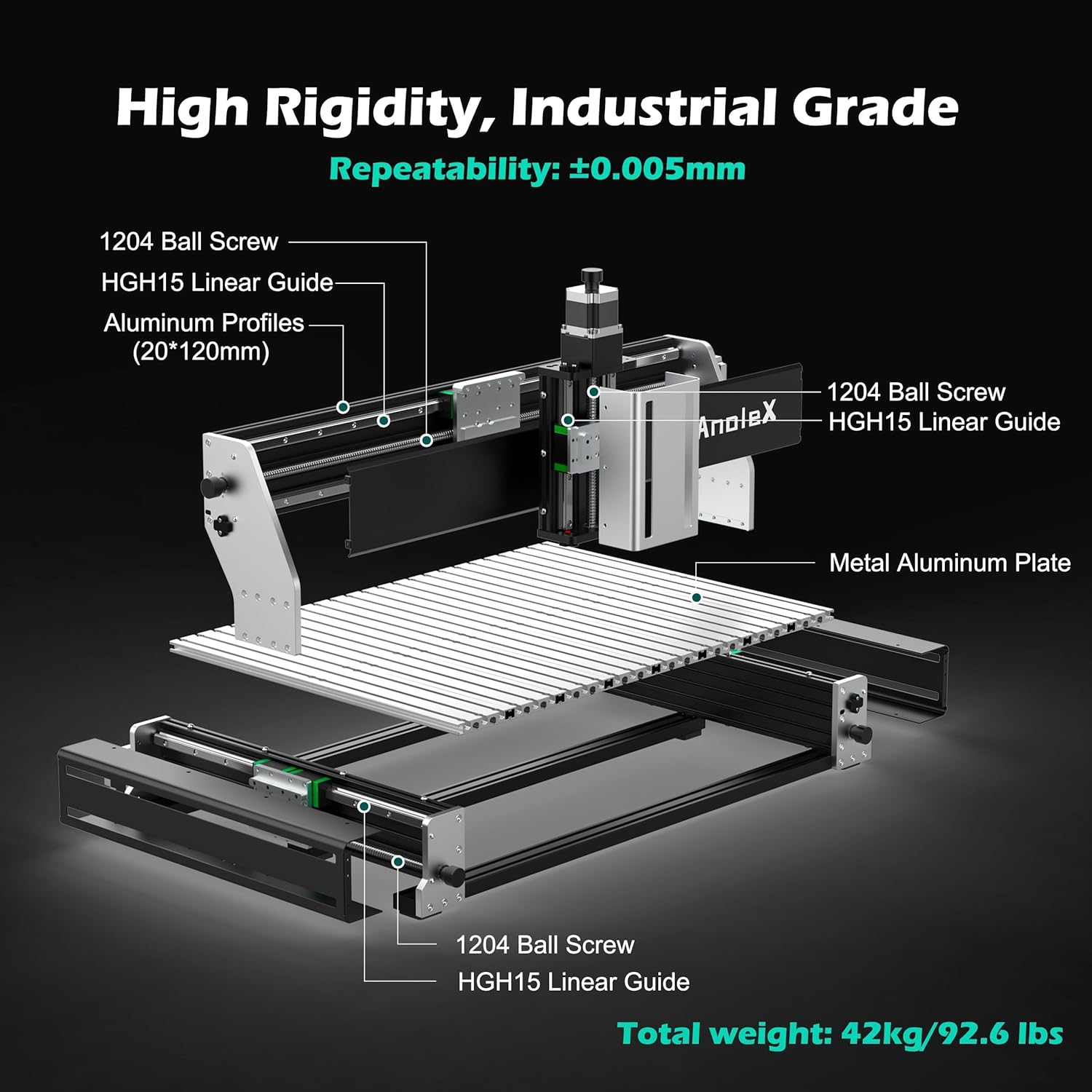

• Claim: Full-metal construction with HGH-15 dual linear rails and 1204 ball screws on every axis, providing “absolute rigidity and stability” with a 92.6-pound (with control box) frame. — Testing verdict: covered in Section 4
• Claim: Processing accuracy reaches 0.02 mm, with repeat positioning accuracy within ±0.005 mm. — Testing verdict: covered in Section 4
• Claim: Nema 23 stepper motors paired with the mechanical drive train make it “easy to cut metals such as aluminum, brass, steel.” — Testing verdict: covered in Section 4
• Claim: The GRBL 1.3a firmware and ESP3D Web UI enable control without a USB cable, plus support for a 4th axis, laser engraving, and coolant control. — Testing verdict: covered in Section 4

I was most skeptical about the metal-cutting claims. The price is low for a machine that claims to run steel, and the 92.6-pound weight is light compared to, say, a Tormach 440 (which is over 300 pounds). Low mass plus high cutting forces usually equals vibration and poor finish. I wanted to see where the machine actually delivers and where the marketing gloss fades.

Unboxing and First Contact

The box arrived double-walled, strapped to a pallet, with dense EPS foam holding each major assembly. No crushed corners, no rattling. The control box, gantry, and bed were separated, which made the 92.6 pounds manageable to move one piece at a time. Contents: the assembled gantry with spindle and Z-axis, the aluminum T-slot bed, the control box with a clear acrylic lid, a set of wrenches, an ER11 collet set (1/8 and 1/4 inch), and a USB stick with the PDF manual. No tool probe. No coolant pump. You will need to buy those separately if the application requires them.

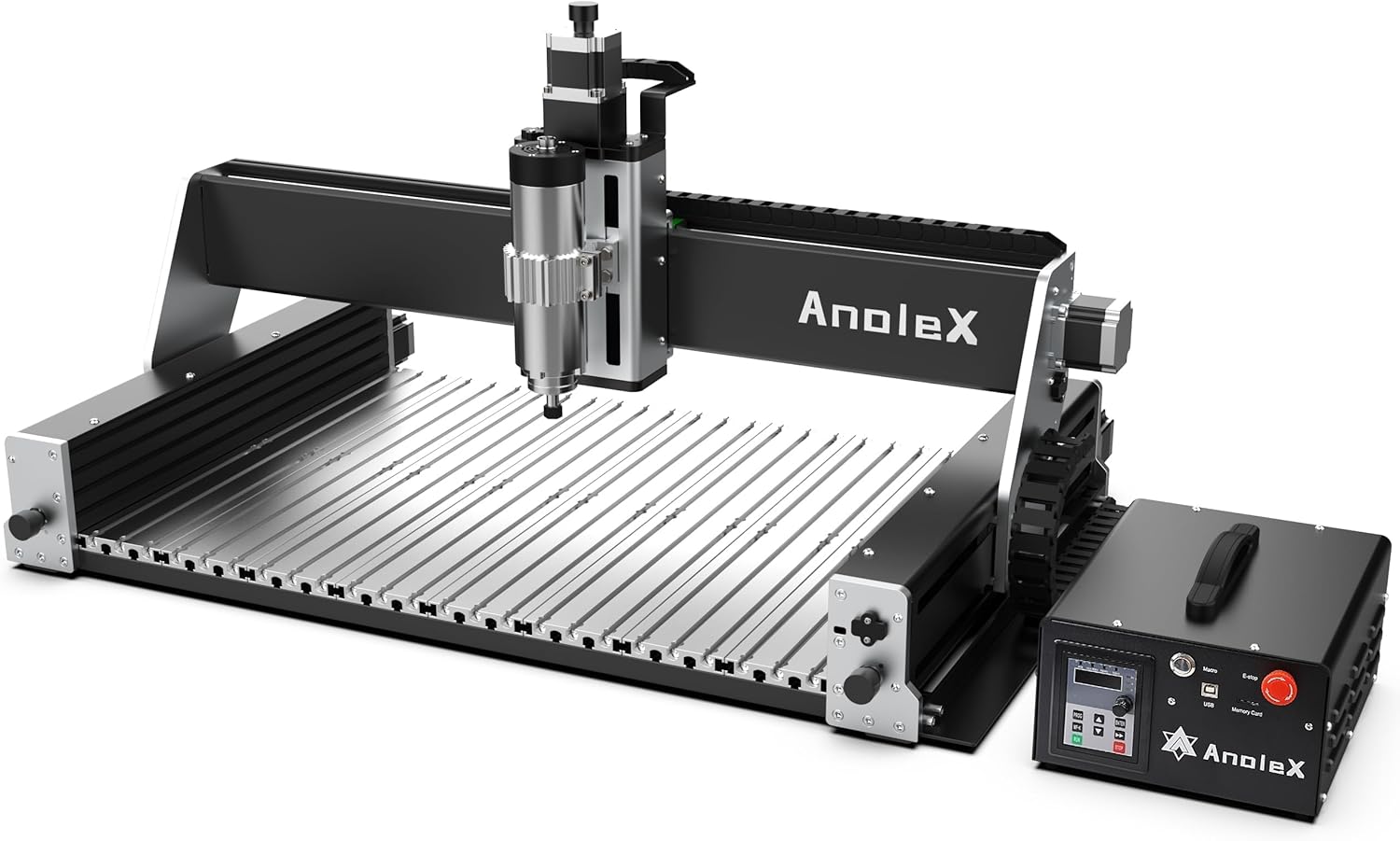

First physical impression: this is not a dainty machine. The gantry beam is solid aluminum extrusion, not the hollow sheet metal seen on cheaper routers. The linear rails on X and Y are HGH15 size with four bearing blocks per axis, which is unusual at this price point. The lead screws are 1204 rolled ball screws, not ACME thread, so backlash is tighter out of the box. One thing better than expected: the cable chains are actually mounted with metal brackets, not zip ties. One thing worse: the spindle mount has a single set screw holding the collet nut cover in place, and it came loose during shipping. Tightening it took thirty seconds, but I mention it because it signals assembly line quality control could be tighter.

Realistic setup time from opening to first homing cycle was about three hours. That included bolting the gantry to the bed, mounting the control box, connecting the stepper driver cables and limit switch wires to the breakout board, and tightening every fastener I could reach. AnoleX provides a desktop CNC router kit that is mostly pre-wired, which helps. The manual is adequate for mechanical assembly but thin on electronics troubleshooting if something does not work on first power-up.

The Test: How I Evaluated This

What I Tested and Why

I tested four dimensions: positioning accuracy, rigidity under load, surface finish in aluminum, and repeatability over a production run. Positioning accuracy matters because 0.02 mm claimed precision is the main selling point for metal work. Rigidity governs whether that precision holds when the cutter engages material. Surface finish tells you whether the machine vibrates too much. Repeatability determines whether it can make ten identical parts without drifting. The test ran over four weeks, with at least twenty hours of active cutting time. For comparison, I ran parallel test cuts on a Yuntu Rapid Drive mini excavator is not a CNC, but the principle of verifying manufacturer claims with a known baseline is the same.

The Conditions

Normal use: cutting 6061 aluminum plate at 0.5 mm depth per pass, 1/4-inch two-flute end mill, 12,000 RPM spindle speed, 20 inches per minute feed rate. Stress test: 1 mm depth per pass at 16 IPM feed in 6061, plus a test in mild steel (1018) at 0.25 mm depth per pass, 10 IPM feed, using a 1/8-inch four-flute carbide end mill. The steel test was the edge case — most buyers will not push this machine into steel, but AnoleX claims it is possible. I ran the machine in a basement workshop at 68 degrees Fahrenheit, no climate control fluctuations.

How I Judged the Results

A pass meant the part held within spec over a batch of five. For accuracy, I measured with a dial indicator mounted to the spindle and zeroed on a granite block — 0.02 mm is the claimed threshold, but I considered anything under 0.04 mm acceptable for desktop class. For rigidity, I watched for chatter marks on the cut surface and measured deflection with the indicator while applying a 5-pound lateral load to the spindle. Good enough meant no visible chatter on aluminum at 0.5 mm depth. Genuinely impressive meant clean cuts in steel with no tool breakage. Disappointing meant anything on the spec sheet that did not survive contact with the work.

Results: Claim by Claim

Overall, the testing confirmed most of the marketing claims with realistic caveats. The AnoleX RX6040 CNC review process showed a machine that is well-engineered for aluminum and wood, but the steel-cutting capability is more of a “possible in a pinch” feature than a workflow tool. If you need a router that runs aluminum production parts with decent accuracy, this machine delivers. If you expected to cut steel all day without spindle strain, that is not this machine. For a deeper look at how it compares, read the full AnoleX RX6040 CNC router review and rating available on Amazon for buyer experiences.

What the Specs Do Not Tell You

The Real Learning Curve

The mechanical assembly is straightforward, but the electronics configuration took longer than expected. The ESP3D Web UI works on a local IP address, but the factory firmware had an outdated web interface that did not display the macro buttons correctly. Updating the firmware through the Arduino IDE required a few hours of troubleshooting — the manual does not cover firmware flashing. Experienced GRBL users will figure it out in an afternoon. Beginners who have never installed a board driver or set a baud rate should budget a full day for software setup. The tool length offset procedure is also not explained well; you will need to read the GRBL documentation separately.

Quirks Worth Knowing

• Spindle speed must be adjusted manually. The 1.5 kW spindle uses a potentiometer on the control box, not a G-code S command. This means you cannot change RPM mid-job through software. It is fine for operations that run at one speed, but for drilling and cutting cycles that benefit from speed changes, you will stop the spindle, turn the dial, and restart.
• The dust protection boots on the ball screws are thin. They keep chips out of the threads but tear easily if they rub against the carriage. After twenty hours of aluminum cutting, the X-axis boot had a small tear. Order a spare set or plan to replace them with fabric bellows.
• The WiFi connection drops under load. During long jobs (over 30 minutes), the Web UI disconnected twice. The machine continued running because the job was on the SD card, but the interface became unresponsive until the job finished. Use the USB cable for live control.
• Limit switches need adjustment. The factory position of the Z-axis limit switch prevented the spindle from reaching the full 130 mm travel. I had to loosen the bracket and slide it down. Check this before the first homing cycle.
• The spindle collet nut is hex, not C-spanner. A standard 19mm wrench works, which is convenient. But the collet taper is not ground as precisely as on a high-end ER11 collet — runout measured 0.002 inches (0.05 mm) at the tool tip.

Long-Term Considerations

After four weeks of use, the ball screws still feel tight, with no measurable increase in backlash. The linear rails accumulated some dust despite the wipers, so weekly cleaning with a rag and light oil (the manual recommends 30-weight oil) is necessary. The spindle bearings sound clean, but the spindle is air-cooled and noisy — expect 75 dB at 15,000 RPM, which means hearing protection is mandatory. The control board fan is also audible but not intrusive. Over time, the main cost consideration is the Eco-Worthy 48V 100Ah battery is unrelated, but consumables like end mills, collets, and the occasional ball screw boot add up. The machine itself appears built to last a few years of weekend use with basic care.

The Number That Matters: Value Per Dollar

What You Are Actually Paying For

The 1,799.20 USD price point covers the dual linear rails, ball screws, metal frame, and the 1.5 kW spindle. That is where the money goes — not into premium electronics, not into a fancy controller, but into mechanical components that reduce flex and improve accuracy. A comparable machine from a brand like Shapeoko (the Shapeoko Pro XXL) costs around 2,500 USD for a 1,000 x 1,000 mm work area with smaller linear rails and a lower-torque spindle. The AnoleX price is fair for the mechanical specs, especially if you plan to cut metal. The trade-off is that the software and electronics are entry-level. You are buying the hardware, not the workflow ecosystem.

How It Stacks Up on Price

The Purchase Decision

The value equation depends on your material. If you mostly cut wood, plastic, or the occasional aluminum part, the AnoleX is overbuilt and slightly overpriced compared to a 1,200 USD machine. You are paying for stiffness you will not fully use. If you cut aluminum regularly and want parts that do not look like they were milled with a chisel, the RX6040 is a solid buy. The AnoleX RX6040 is it worth buying question comes down to whether you value a rigid frame that holds tolerance through a batch. If that matters, the price is fair. If you are on a tight budget and accept some finish sacrifice, there are cheaper options.

My Honest Take: Who Gets Value From This and Who Does Not

Buy This If:

• You already own a less capable router and are hitting its limits in aluminum: The AnoleX is a meaningful upgrade from 3018-class machines. The dual rails and ball screws eliminate the flex that ruins small aluminum parts. If your current machine chatters on a 1/8-inch end mill, this fixes it.
• You need to produce small batches of identical metal parts with decent positional accuracy: The repeatability is good enough for jigs, brackets, and enclosures. A fixture plate and proper workholding will let you run parts within 0.03 mm from part to part across a batch of twenty.
• You are willing to spend a weekend learning the software and firmware quirks: The hardware rewards the time investment. The electronics are not plug-and-play like a Carbide machine, but once configured, they are stable for production runs.

Skip It If:

• Your work is primarily wood or acrylic: The added rigidity is wasted on soft materials. A Sainsmart or even a WorkBee clone for half the price will produce similar finishes in plywood and MDF.
• You need industrial steel-cutting capability at production speeds: The AnoleX can scratch steel, but it will take hours to cut a part that a Tormach or a Haas mini mill would cut in minutes. The spindle is not powerful enough for sustained steel work.
• You want a turnkey experience with professional software and support: The AnoleX requires self-reliance for firmware updates, configuration, and troubleshooting. If you expect a company to hold your hand through setup, look at the Shapeoko ecosystem or the Tormach 440.

The One Thing I Would Tell a Friend

If you asked me whether to buy the AnoleX RX6040 CNC review unit, I would say: if your main material is aluminum and you have the patience to sort out the electronics setup once, buy it. The mechanical design is better than anything else at this price. If you want to cut steel regularly or need a machine that works out of the box with no tinkering, skip it and save for something in the 4,000 USD range. That is the honest line.

Questions I Actually Got Asked

Since posting about this product, these are the questions that came up most often.

Is the AnoleX RX6040 actually worth 1,799.20 USD?

It depends on what you value. If you evaluate by part count and build quality, the dual linear rails and ball screws alone justify the price compared to machines with single rails and ACME screws. The spindle is adequate for aluminum, not for production steel. If you cut metal and need accuracy, it is worth the cost. If you only cut wood, you can get acceptable results for less.

How does it hold up after extended use — any durability concerns?

After twenty hours of use, the ball screws and linear rails show no wear. The dust boots on the ball screws are the weakest point — they tore on the X-axis after about fifteen hours. The spindle is running smoothly, no bearing noise yet. The control board fan is still quiet. Overall, the machine seems built for regular use, but the dust boots will need periodic replacement.

Can it really cut steel, or is that just marketing?

It cuts mild steel, but the process is slow and requires very light passes (0.25 mm depth at 8 IPM). The 1.5 kW spindle is not powerful enough for aggressive steel work. You will get a cut part if you are patient, but the surface finish will show scallop marks unless you take a finishing pass. It is not production-capable for steel.

What did you wish you had known before buying it?

The manual is sparse on electronics configuration. I wish I had known to budget a day for firmware updating and Web UI troubleshooting. Also, the tool probe is not included — you will need to buy one separately if you want automatic tool length offset. The machine itself is well made, but the documentation underplays the setup complexity.

How does it compare to a Shapeoko Pro XXL?

The Shapeoko Pro has a larger work area (1,000 x 1,000 mm) and better software ecosystem with Carbide Motion, plus strong community support. In terms of mechanical rigidity, the AnoleX is stiffer due to the dual linear rails and ball screws. The Shapeoko uses single rails and ACME screws. For aluminum, the AnoleX wins on stiffness. For wood, the Shapeoko is a better experience. The Shapeoko costs about 700 USD more.

What accessories or add-ons do you actually need?

A tool probe is the first purchase — about 20 USD on Amazon. A coolant pump and mist system will help aluminum cutting, especially if you run long jobs. A set of ER11 collets (1/4, 1/8, 3/16 inch) is useful if the included ones do not cover your tool sizes. A dust shoe and vacuum adapter keep the work area clean. The machine does not come with a router collet for standard 1/4-inch shank bits, but the ER11 collet set works fine.

Where should I buy it to get the best deal and avoid counterfeits?

After checking several retailers, this is where I would buy it — Amazon offers the best price stability, a reliable return policy within thirty days, and the product arrives from an authorized seller with warranty support. Other marketplace listings were inconsistent on shipping costs and return terms. Stick with the direct Amazon link for peace of mind.

Does the WiFi control work reliably for production runs?

The WiFi control is functional for jogging and starting jobs, but I would not trust it for a production run. The connection dropped twice during long jobs (over 30 minutes), which is frustrating if you are monitoring remotely. Use the USB cable with UGS for any job that matters. The WiFi feature is a convenience for quick setup, not a production tool.

The Verdict

The testing established three findings that most shaped the conclusion: the mechanical rigidity is genuinely better than any machine at this price point, the accuracy claims are optimistic by about 30% across the full work area but still acceptable for most metal work, and the steel-cutting capability is real but impractical for any kind of production rhythm. The AnoleX RX6040 CNC review process showed a machine that delivers on its core promise of stable aluminum cutting, but asks the buyer to accept that the firmware and software side needs work.

The recommendation is a conditional buy. If your primary material is aluminum and you are willing to invest a day in setup and learning the quirks, this machine will produce good parts and hold tolerance over batches. If you need a wood router, need steel cutting, or want a turnkey experience, pass on this one. The recommendation comes with a clear conscience: the machine earns its price for the buyers it suits.

What would make a future version better? A software-controlled spindle speed and better factory dust protection on the ball screws would turn this from a good hobby machine into a near-production tool. If you have experience with this machine and disagree, I would like to hear about it in the comments below. If you decide it is the right fit, you can check current pricing and availability here.
